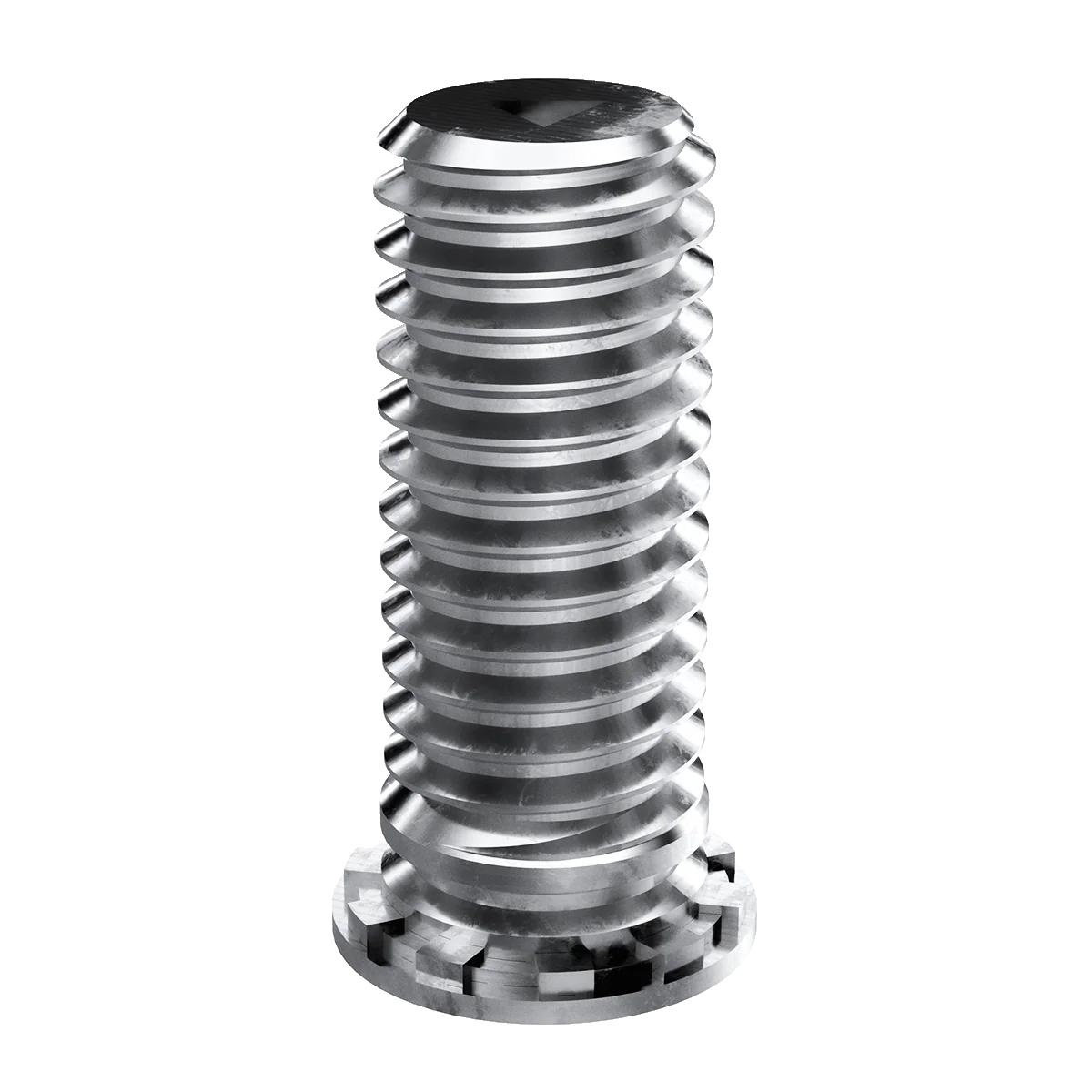

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.500, 100 Pack
HomeStore

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.500, 100 Pack

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.500, 100 Pack

$25,349.86

Original: $72,428.18

-65%
Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.500, 100 Pack—

$72,428.18

$25,349.86

The Story

  • #4-40 x 0.5 Self clinching stainless Steel threaded stud
  • #4 (0.112) diameter, 40 Threads per inch, UNC thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CHS studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHS440-8
  • Material: Stainless Steel; 300 Series
  • Color/Finish: Passivated /
  • Size: 440
  • Width: 0.18in [4.5mm]
  • Height: 0.18in [4.5mm]
  • Depth: 0.50in [12.7mm]
  • Weight:
  • Thread: 4-40 UNC x 0.5 in
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet

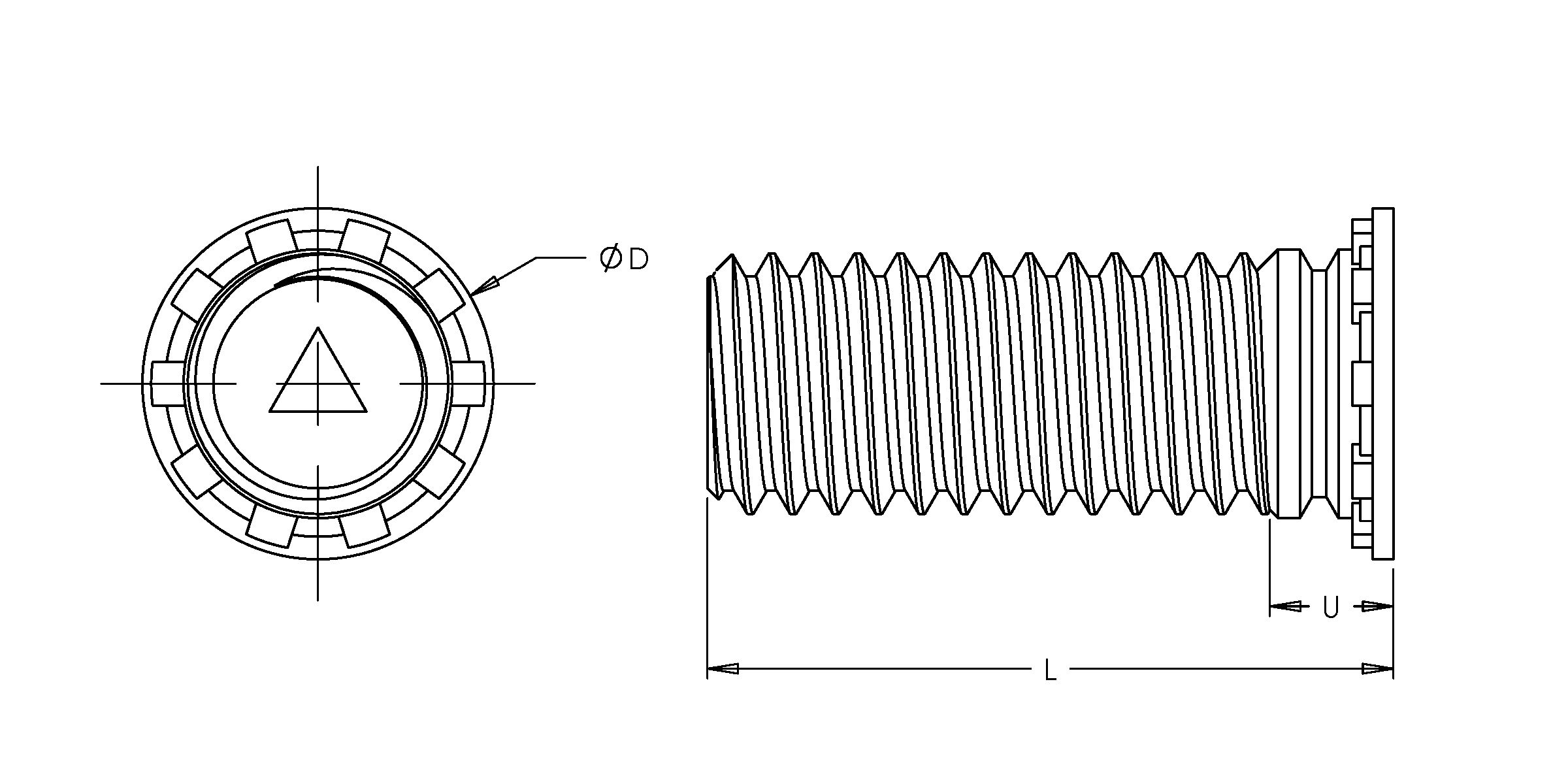

    Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.500, 100 Pack - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    • #4-40 x 0.5 Self clinching stainless Steel threaded stud
    • #4 (0.112) diameter, 40 Threads per inch, UNC thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CHS studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHS440-8
  • Material: Stainless Steel; 300 Series
  • Color/Finish: Passivated /
  • Size: 440
  • Width: 0.18in [4.5mm]
  • Height: 0.18in [4.5mm]
  • Depth: 0.50in [12.7mm]
  • Weight:
  • Thread: 4-40 UNC x 0.5 in
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
