Self-Clinching Stud, Flush Head, Steel, Zinc, M6x1.0 x 10, 50 Pack
HomeStore

Self-Clinching Stud, Flush Head, Steel, Zinc, M6x1.0 x 10, 50 Pack

Self-Clinching Stud, Flush Head, Steel, Zinc, M6x1.0 x 10, 50 Pack

$12,674.93

Original: $36,214.09

-65%
Self-Clinching Stud, Flush Head, Steel, Zinc, M6x1.0 x 10, 50 Pack—

$36,214.09

$12,674.93

The Story

  • M6x1.0 x 10 Self clinching steel threaded stud
  • 6MM Diameter, 1.0 threads per MM, Metric Thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHM6-10
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: M6
  • Width: 8.2mm [0.32in]
  • Height: 8.2mm [0.32in]
  • Depth: 10.0mm [0.39in]
  • Weight:
  • Thread: M6x1.0 x 10 mm
  • Country of Origin: United States
  • Package Quantity: 50
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions

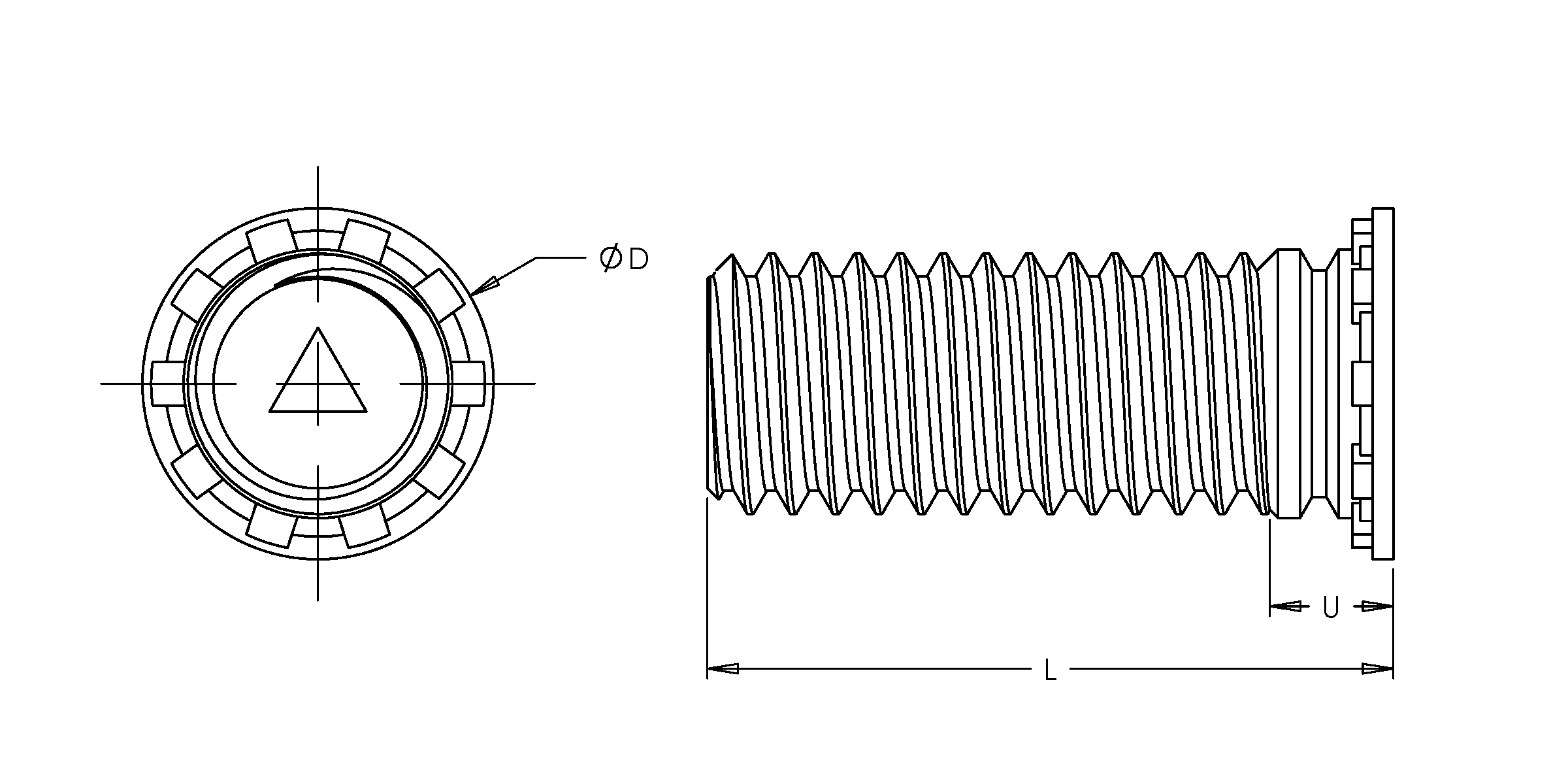

    Self-Clinching Stud, Flush Head, Steel, Zinc, M6x1.0 x 10, 50 Pack - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    • M6x1.0 x 10 Self clinching steel threaded stud
    • 6MM Diameter, 1.0 threads per MM, Metric Thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHM6-10
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: M6
  • Width: 8.2mm [0.32in]
  • Height: 8.2mm [0.32in]
  • Depth: 10.0mm [0.39in]
  • Weight:
  • Thread: M6x1.0 x 10 mm
  • Country of Origin: United States
  • Package Quantity: 50
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions
