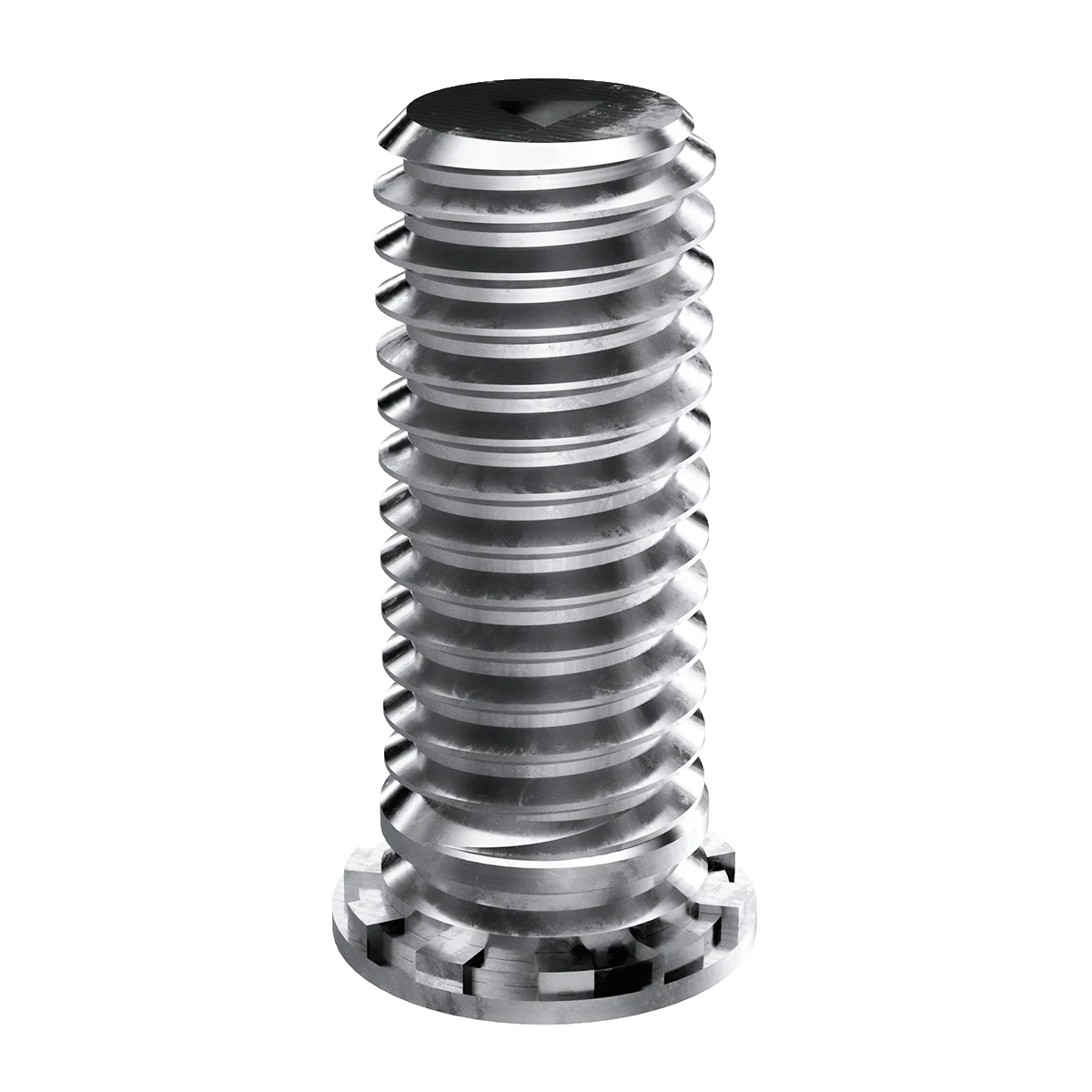

Self-Clinching Stud, Flush Head, Steel, Zinc, M5x0.8 x 28, 100 Pack
HomeStore

Self-Clinching Stud, Flush Head, Steel, Zinc, M5x0.8 x 28, 100 Pack

Self-Clinching Stud, Flush Head, Steel, Zinc, M5x0.8 x 28, 100 Pack

$253.50

Original: $724.28

-65%
Self-Clinching Stud, Flush Head, Steel, Zinc, M5x0.8 x 28, 100 Pack—

$724.28

$253.50

The Story

  • M5x0.8 x 28 Self clinching steel threaded stud
  • 5MM Diameter, 0.8 threads per MM, Metric Thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHM5-28
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: M5
  • Width: 6.5mm [0.26in]
  • Height: 6.5mm [0.26in]
  • Depth: 28.0mm [1.10in]
  • Weight:
  • Thread: M5x0.8 x 28 mm
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions

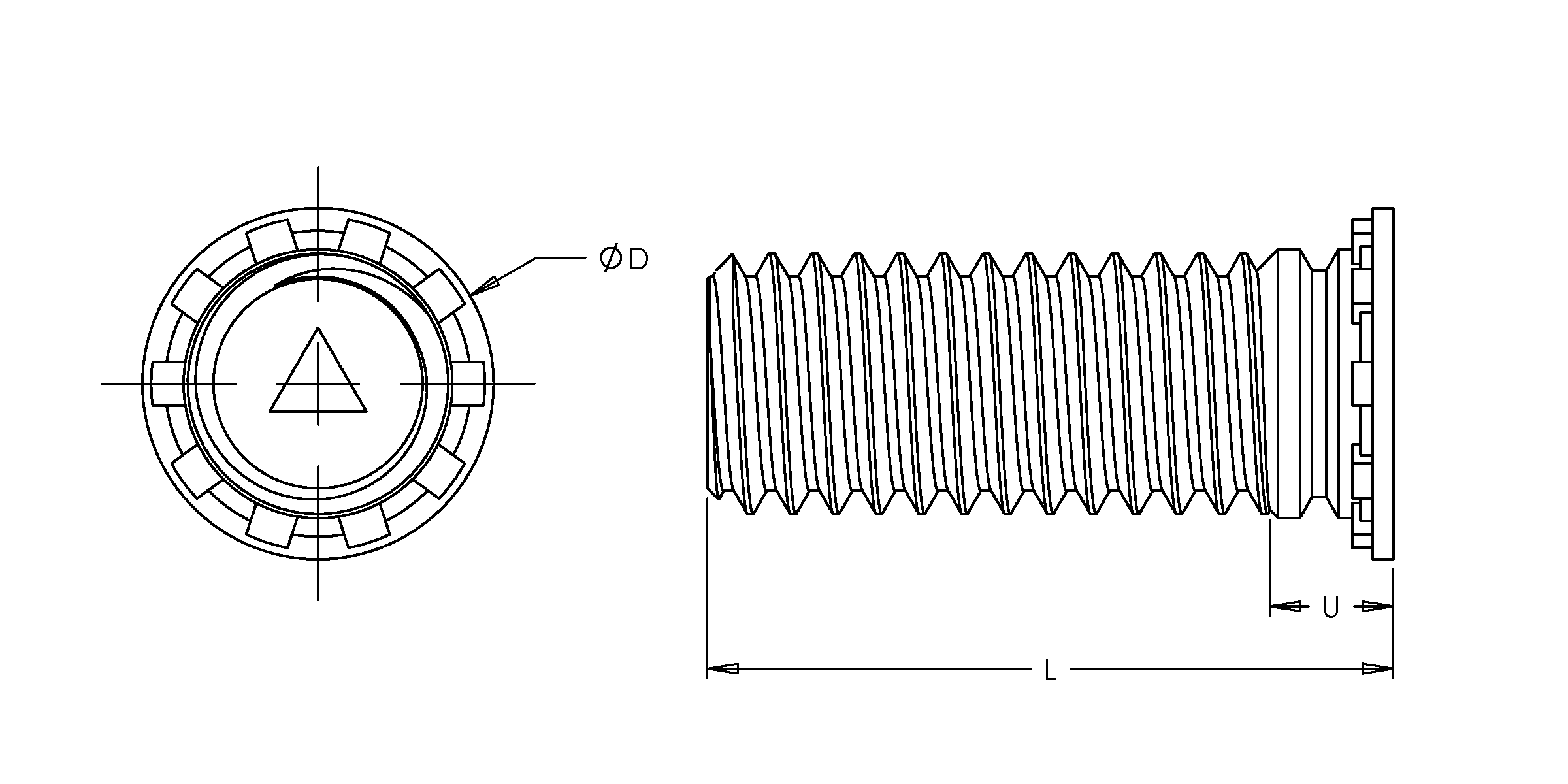

    Self-Clinching Stud, Flush Head, Steel, Zinc, M5x0.8 x 28, 100 Pack - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    • M5x0.8 x 28 Self clinching steel threaded stud
    • 5MM Diameter, 0.8 threads per MM, Metric Thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHM5-28
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: M5
  • Width: 6.5mm [0.26in]
  • Height: 6.5mm [0.26in]
  • Depth: 28.0mm [1.10in]
  • Weight:
  • Thread: M5x0.8 x 28 mm
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions
