Self-Clinching Stud, Flush Head, Steel, Zinc, M3.5x0.6 x 22, 100 Pack
HomeStore

Self-Clinching Stud, Flush Head, Steel, Zinc, M3.5x0.6 x 22, 100 Pack

Self-Clinching Stud, Flush Head, Steel, Zinc, M3.5x0.6 x 22, 100 Pack

$724.28
Self-Clinching Stud, Flush Head, Steel, Zinc, M3.5x0.6 x 22, 100 Pack—
$724.28

The Story

  • M3.5x0.6 x 22 Self clinching steel threaded stud
  • 3.5MM Diameter, 0.6 threads per MM, Metric Thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHM3.5-22
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: M3.5
  • Width: 5.3mm [0.21in]
  • Height: 5.3mm [0.21in]
  • Depth: 22.0mm [0.87in]
  • Weight:
  • Thread: M3.5x0.5 x 22 mm
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions

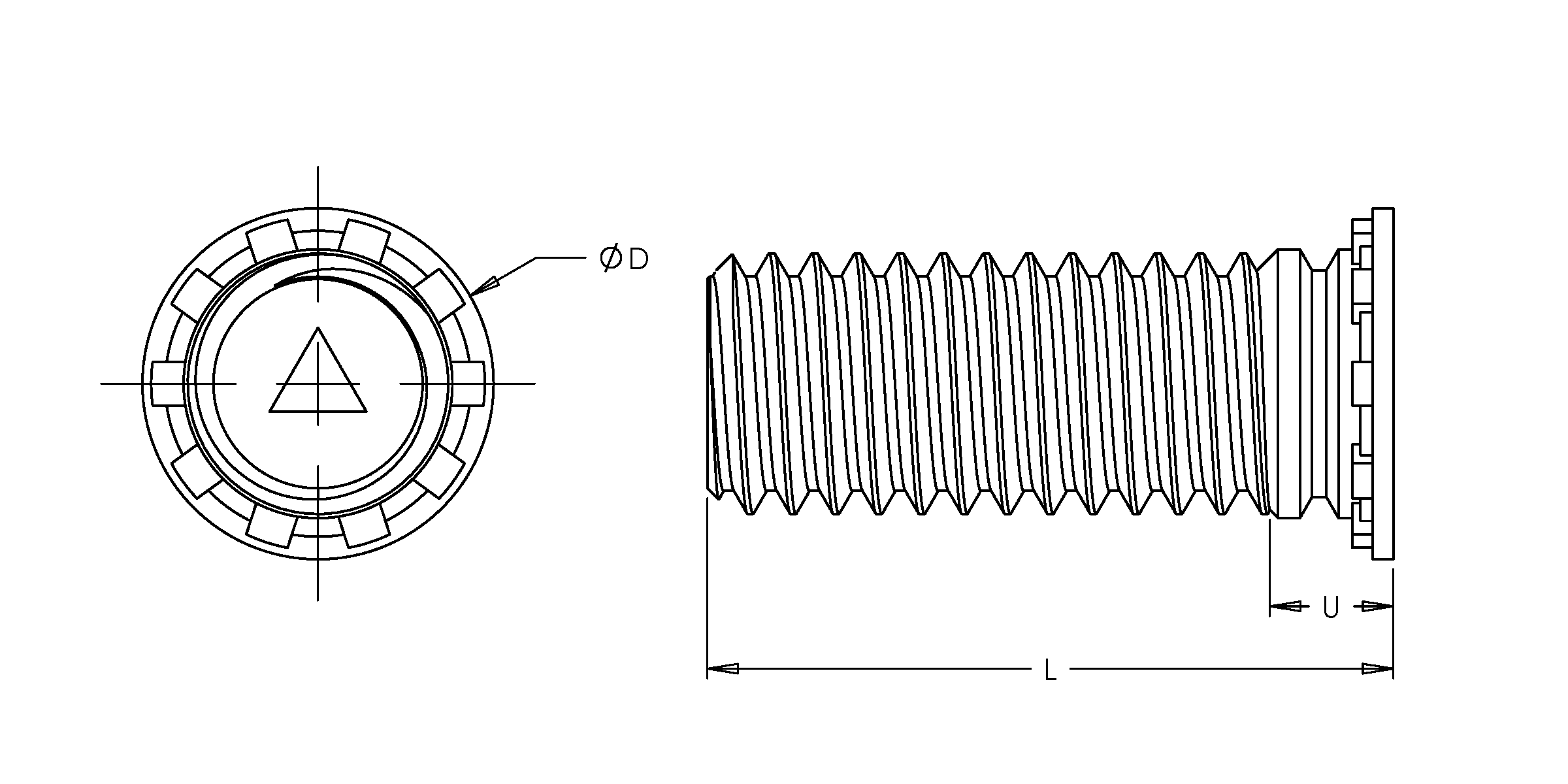

    Self-Clinching Stud, Flush Head, Steel, Zinc, M3.5x0.6 x 22, 100 Pack - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    • M3.5x0.6 x 22 Self clinching steel threaded stud
    • 3.5MM Diameter, 0.6 threads per MM, Metric Thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CH studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHM3.5-22
  • Material: Steel; Heat Treated
  • Color/Finish: Zinc Clear /
  • Size: M3.5
  • Width: 5.3mm [0.21in]
  • Height: 5.3mm [0.21in]
  • Depth: 22.0mm [0.87in]
  • Weight:
  • Thread: M3.5x0.5 x 22 mm
  • Country of Origin: United States
  • Package Quantity: 100
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions
